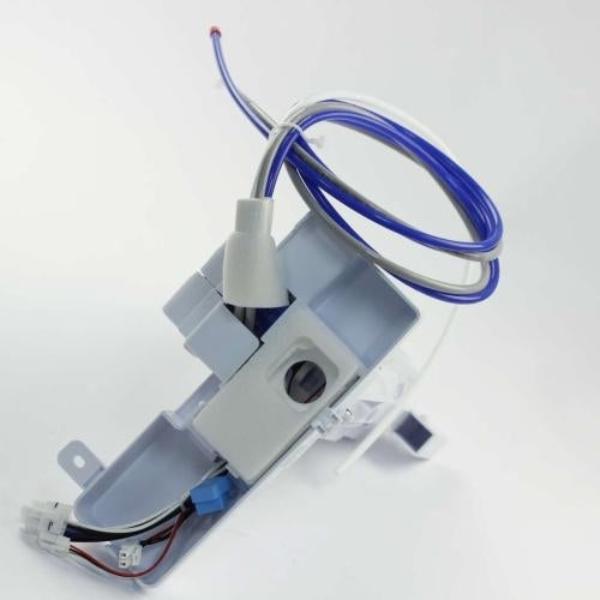

DA81-06002A Samsung Refrigerator Samsung Refrigerator Water Filter Head and Cover Assembly

Restore leak-free filtered water dispensing to your Samsung refrigerator with the genuine OEM DA81-06002A Water Filter Head and Cover Assembly. The filter head is the housing that receives and locks the water filter cartridge in place — when it cracks, warps, or the locking tabs break, the filter won't seat properly, leading to water leaks inside the fridge or loss of filtered water flow to the dispenser.

Compatible With:

• Samsung RF28R7201SR, RF28R7201SG (28 cu. ft. French Door Refrigerator)
• Samsung RF28T5001SR, RF28T5001S4 (28 cu. ft. French Door Refrigerator)
• Samsung RF23R6201SR, RF23R6201SG (22.6 cu. ft. Counter-Depth French Door Refrigerator)
• Samsung RF27T5241SR, RF27T5241S4 (26.5 cu. ft. French Door Refrigerator)
• Samsung RF28K9380SR, RF28K9380SG (28 cu. ft. 4-Door Flex Refrigerator)
• Check your model tag (inside the refrigerator door frame) to confirm fit before ordering

Key Features & Benefits:

• Genuine OEM Part: Samsung-manufactured filter head — correct locking tab design, O-ring seat dimensions, and water line connector type for your model.
• Stops Internal Water Leaks: Resolves water pooling in the fridge compartment, reduced water flow at the dispenser, or filter that won't lock into place.
• Includes Cover: Full assembly includes the filter head housing and cover panel — no need to source components separately.

Specifications:

• Part Number: DA81-06002A
• Part Type: Water Filter Head and Cover Assembly
• Compatible Appliance Type: Samsung French Door & 4-Door Flex Refrigerator
• OEM Manufacturer: Samsung

Installation Notes: Shut off the water supply to the refrigerator before starting. Disconnect power and remove the existing water filter cartridge. The filter head is typically located in the upper-right interior of the fridge compartment — unscrew or unclip the old housing and transfer water line connections carefully to the new head. Check for leaks after reinstallation before replacing the filter cartridge. Professional installation recommended if unfamiliar with refrigerator water line connections.

Part #: DA81-06002A
