DC67-00848A Samsung Washer Air Hose Tub Housing

Product Description

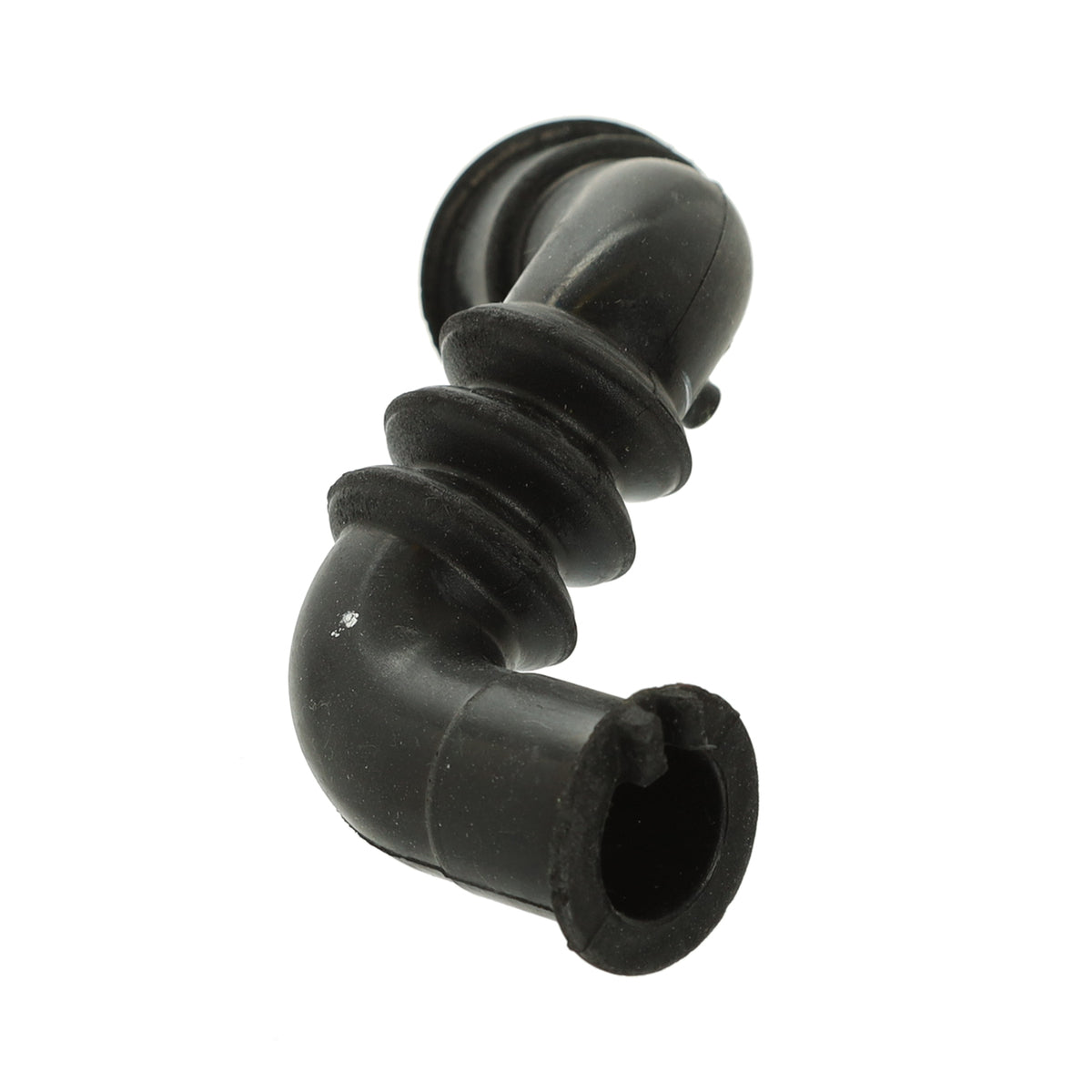

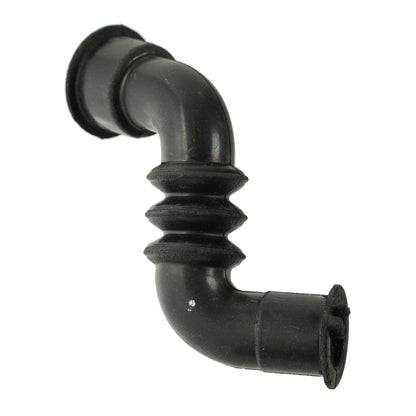

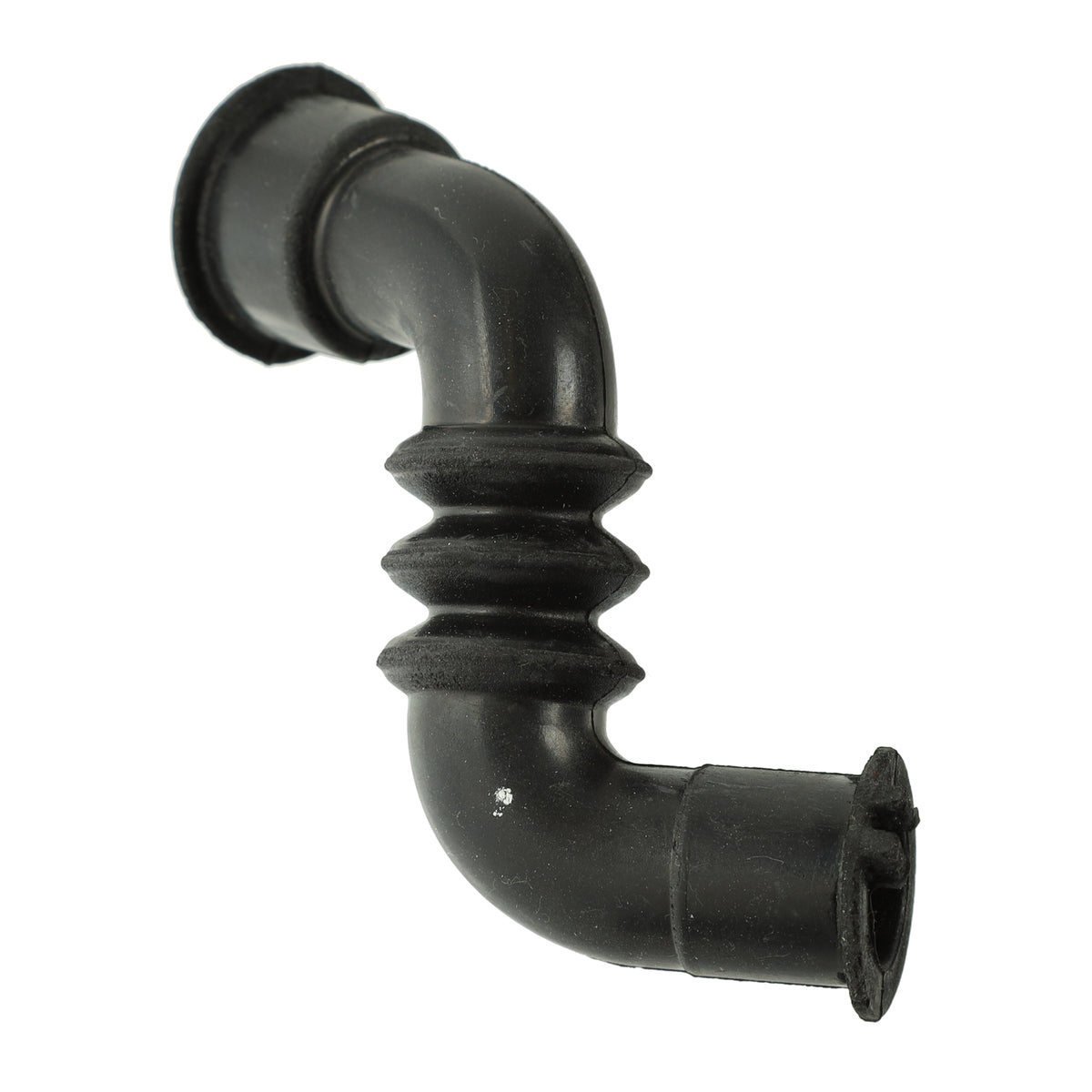

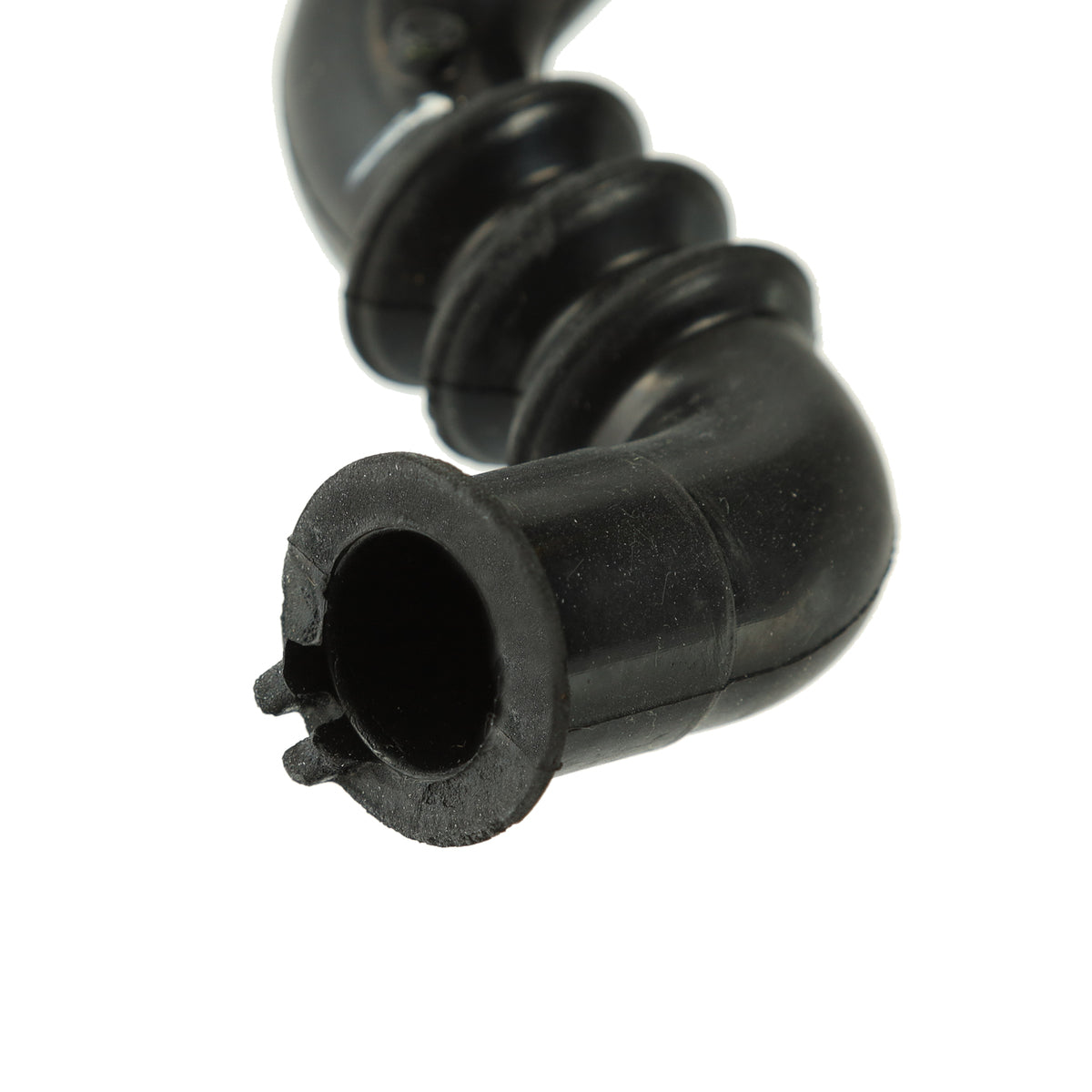

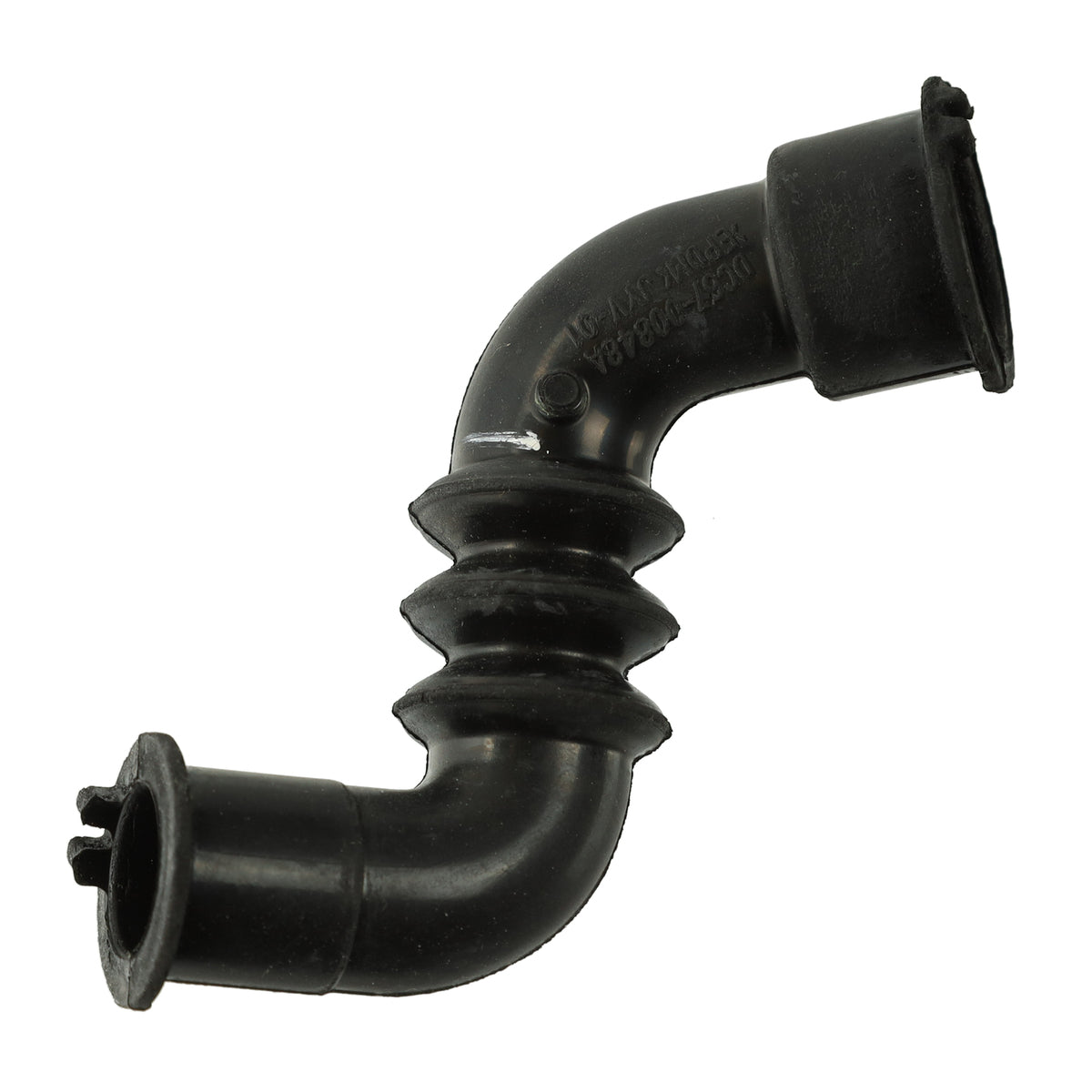

The DC67-00848A Samsung Washer Air Hose Tub Housing (also called Air Hose Tub or Water-Level Pressure Switch Hose) is a genuine OEM flexible black rubber hose that connects the bottom of the washer tub to the water-level pressure switch. It transmits air pressure from rising water in the tub to the switch, enabling the washer to detect and regulate water levels accurately during cycles.

This corrugated, elbow-shaped hose (made of durable EPDM rubber) measures approximately 2.5mm inner diameter and 50cm long. It replaces part numbers: AP6243525, PS12084771, 4958154 (and in some cases, older DC31-00178A).

Features

• Genuine Samsung OEM — Ensures perfect fit, reliability, and performance.
• Flexible corrugated design — Allows easy routing and resistance to kinks.
• Durable EPDM rubber construction — Resists wear, cracking, and leaks over time.
• Precise pressure transmission — Maintains accurate air flow for water level sensing.
• Compact and lightweight — Simple to handle during replacement.

Benefits

• Fixes common issues like overfilling, underfilling, not starting cycles, or error codes related to water level (e.g., OE, LE).
• Restores accurate water level detection for efficient washing, better cleaning results, and reduced water/energy waste.
• Prevents potential leaks or damage to the pressure switch/control board.
• Genuine part avoids compatibility problems common with generics.
• Relatively inexpensive and easy DIY fix, extending the washer's lifespan.

Installation Guide

Difficulty: Medium (requires accessing the back; 30-60 minutes). Tools needed: Phillips screwdriver, pliers (optional), work gloves. Safety first: Unplug the washer and turn off water supply valves.

General steps (based on common Samsung front-load models):

1. Unplug the washer and turn off water supply.
2. Move the washer away from the wall for access.
3. Remove screws along the top and bottom edges of the rear panel.
4. Carefully lift and remove the back panel.
5. Locate the air hose (black corrugated tube) connected to the tub (bottom) and pressure switch (usually on the control board or side).
6. Gently pull or unclip the old hose from both ends (may require pliers if clamped).
7. Install the new DC67-00848A hose—push firmly onto the tub nipple and pressure switch port until secure.
8. Reinstall the back panel and secure with screws.
9. Plug in the washer, turn on water, and run a test cycle to check for proper operation and no leaks.

Tip: Take photos of connections before removal. Access varies slightly by model—consult your manual or online videos for specifics.

Compatible Machines

This part fits many Samsung front-load washers, primarily in the WF42H and WF45H series (4.2 cu ft models), including (partial list):

• WF42H5000AW/A2
• WF42H5200AF/A2
• WF42H5200AP/A2
• WF42H5200AW/A2
• WF42H5400AW/A2
• WF42H5600AW/A2
• And similar variants (e.g., WF45 series in some cases).

Always verify by entering your exact model number on sites like PartSelect, AppliancePartsPros, or Samsung Parts.

Maximize the efficiency of your Samsung washing machine with the DC67-00848A Washer Air Hose Tub Housing.

This genuine OEM part guarantees a smooth flow of air, resulting in a more effective washing performance.

Part #: DC67-00848A
