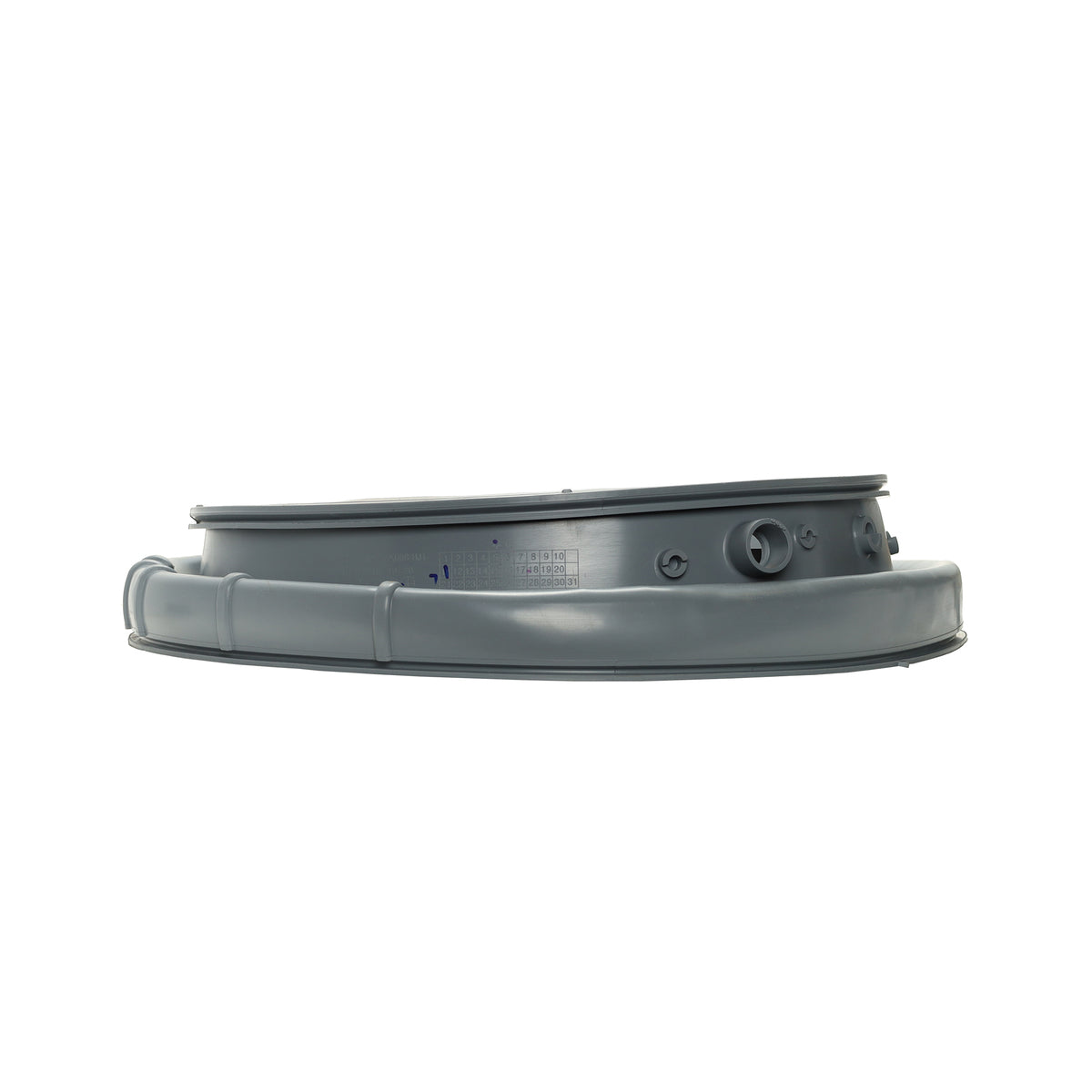

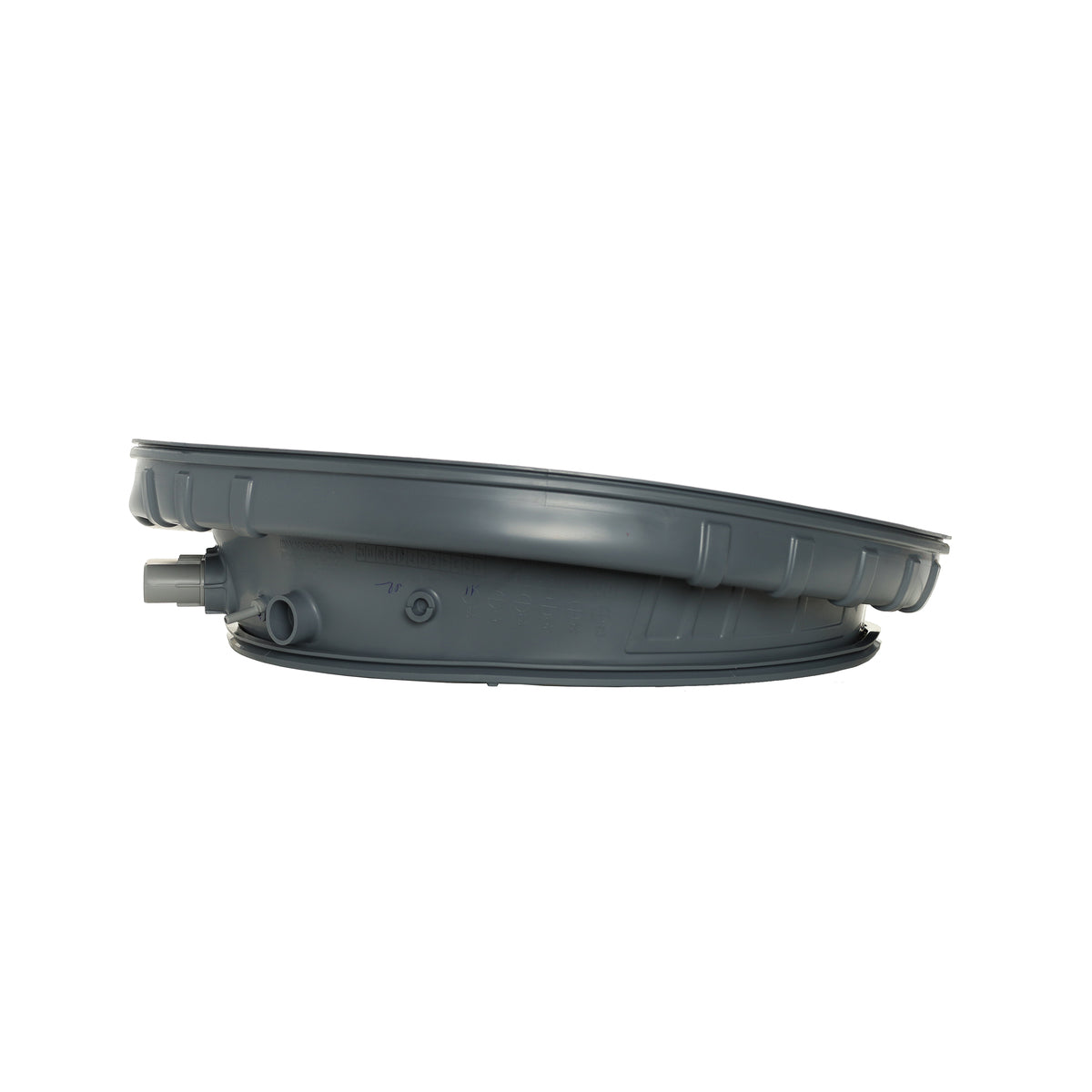

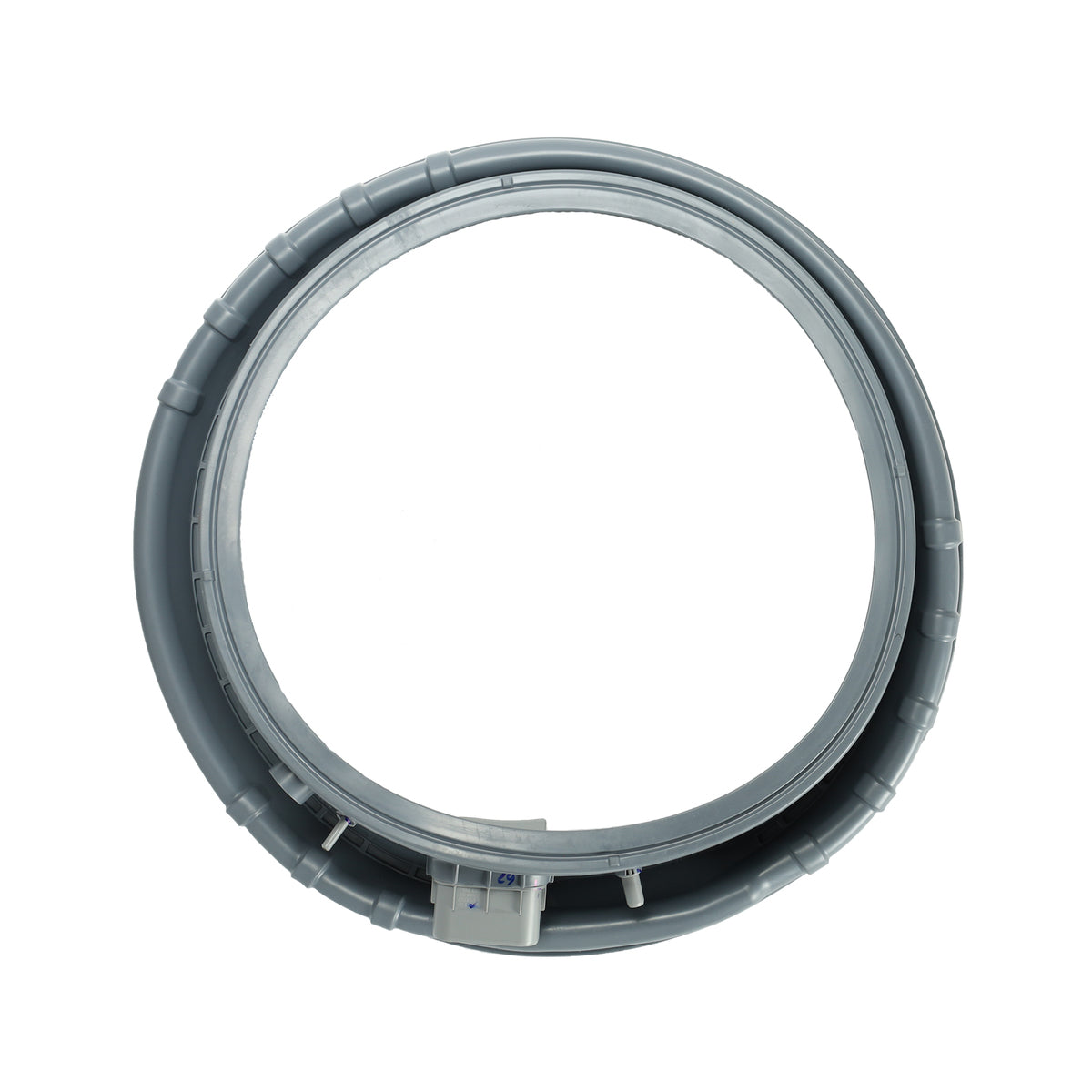

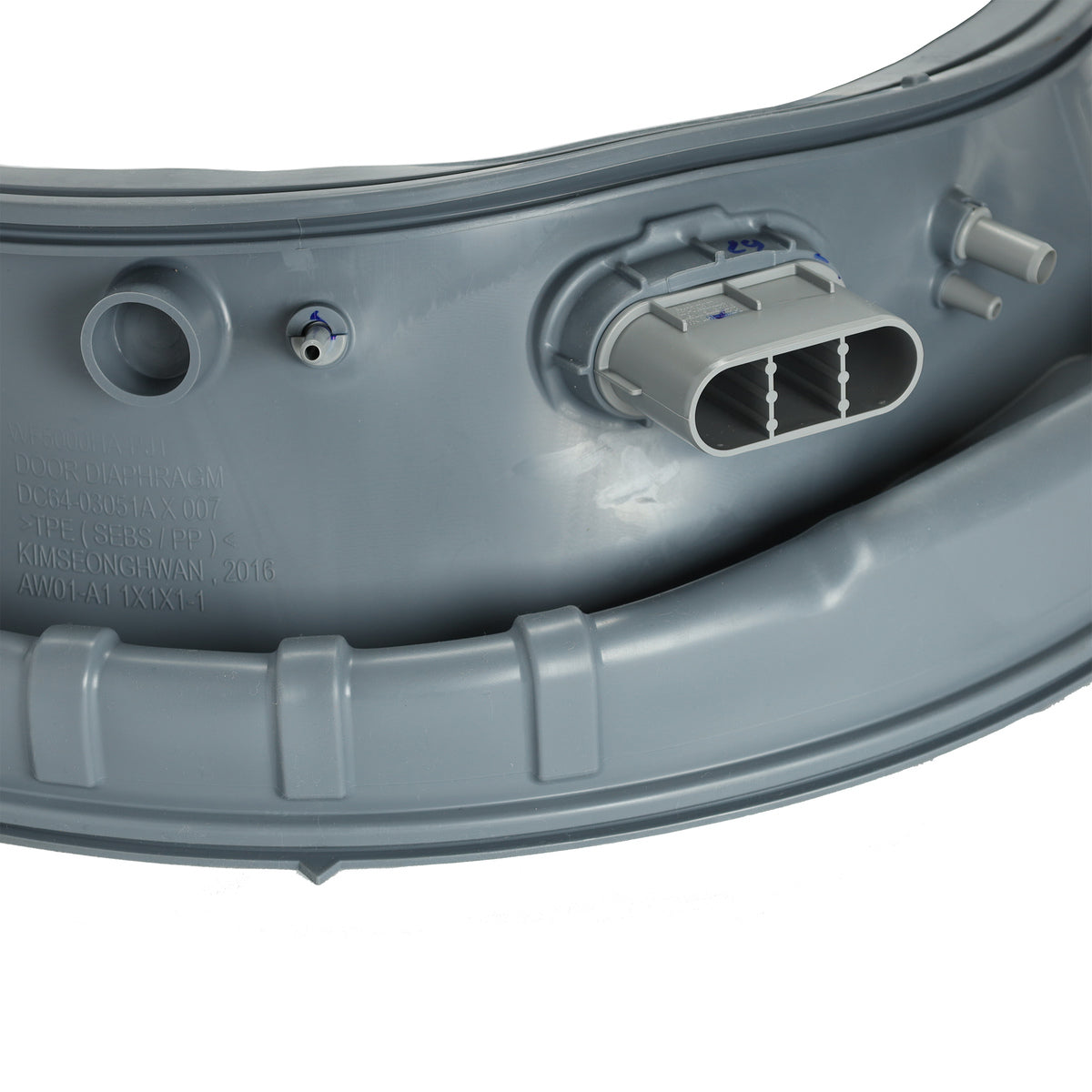

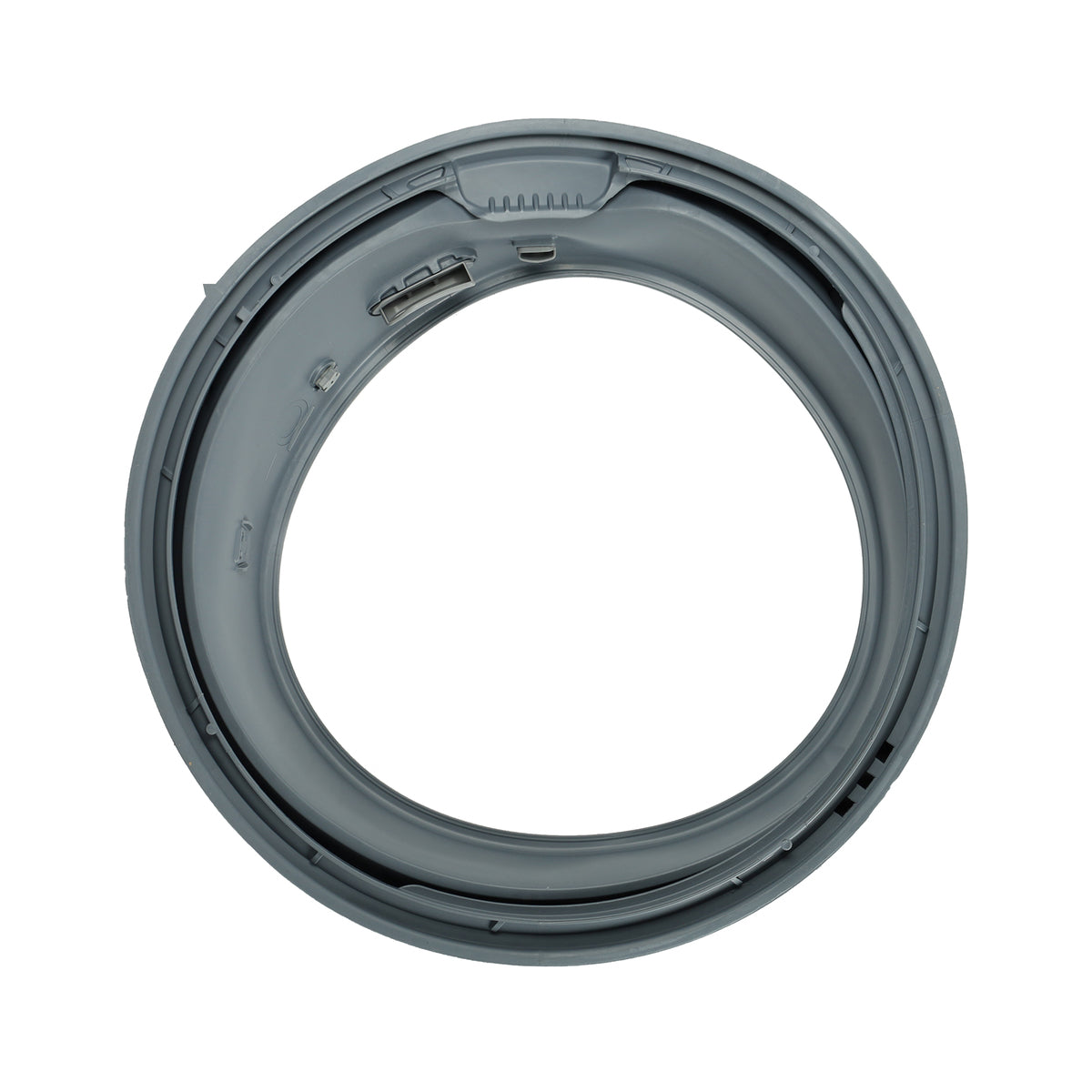

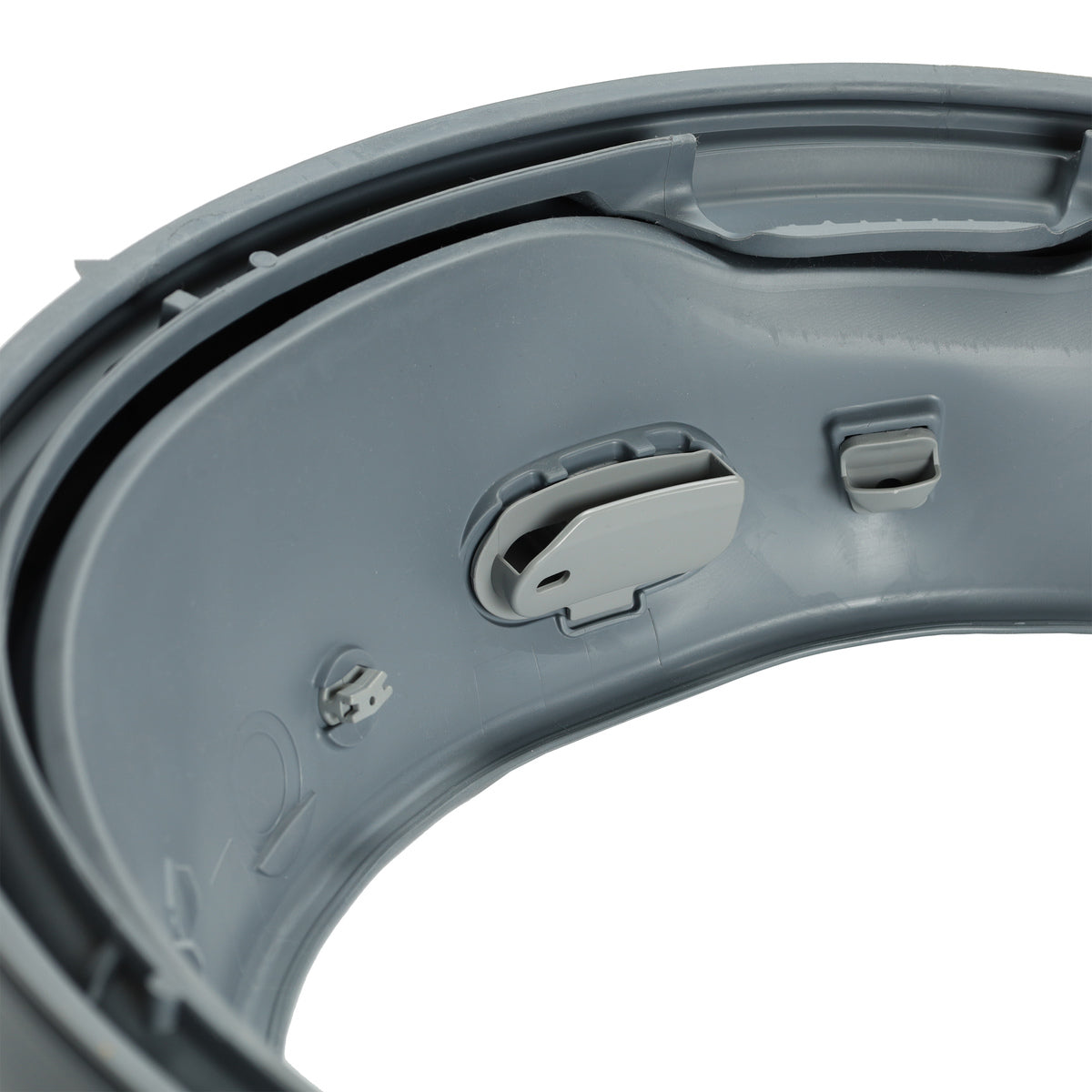

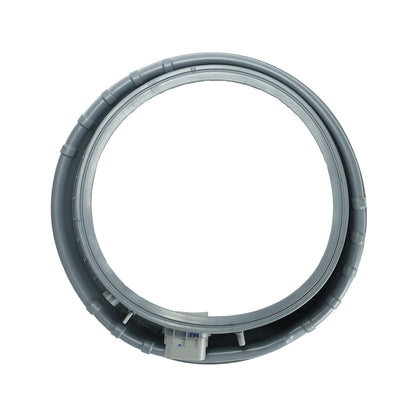

DC97-18094B Samsung Washer Door Diaphragm

Stop water leaks and protect your laundry room with the genuine OEM DC97-18094B Samsung Washer Door Diaphragm (boot seal). This flexible rubber gasket forms the watertight seal between the front-load washer door and the drum opening. Over time, diaphragms develop tears, mold growth, or hardening that causes leaks at the front of the machine during wash and spin cycles.

Compatible With:

• Samsung WF45R6100AW, WF45R6100AV (4.5 cu. ft. Front Load Washer)
• Samsung WF45T6000AW, WF45T6000AV (4.5 cu. ft. Front Load Washer)
• Samsung WF50R8500AV, WF50R8500AW (5.0 cu. ft. Front Load Washer)
• Samsung WF42H5000AW, WF42H5000AP (4.2 cu. ft. Front Load Washer)
• Samsung WF45H7200AW, WF45H7200AP (4.5 cu. ft. Front Load Washer with Steam)
• Check your model tag (inside the door opening) to confirm diaphragm diameter and clamp style before ordering

Key Features & Benefits:

• Genuine OEM Part: Samsung-manufactured boot seal — correct rubber compound durometer, bead diameter, and drain port position for your model.
• Stops Front Leaks: Resolves water leaking from the front of the washer during wash or spin, mold or mildew odour from a deteriorated seal, or visible tears in the boot.
• Restores Drum Seal Integrity: A properly fitted diaphragm also prevents small items (coins, bobby pins) from escaping into the pump filter or drum cavity.

Specifications:

• Part Number: DC97-18094B
• Part Type: Door Diaphragm / Boot Seal
• Compatible Appliance Type: Samsung Front Load Washer
• OEM Manufacturer: Samsung

Special Order (Shipping times may vary)

Installation Notes: Disconnect power before starting. The door diaphragm is secured by an inner spring clamp at the drum and an outer clamp at the door opening — remove the outer clamp first, then peel the diaphragm off the drum lip. Note the orientation of the drain port (typically at the bottom) before removing the old seal. Seat the new diaphragm evenly around the drum lip before re-securing the clamps. Run an empty cycle and check for leaks before use. Professional installation recommended if unfamiliar with front-load washer boot seal replacement.

Part #: DC97-18094B
