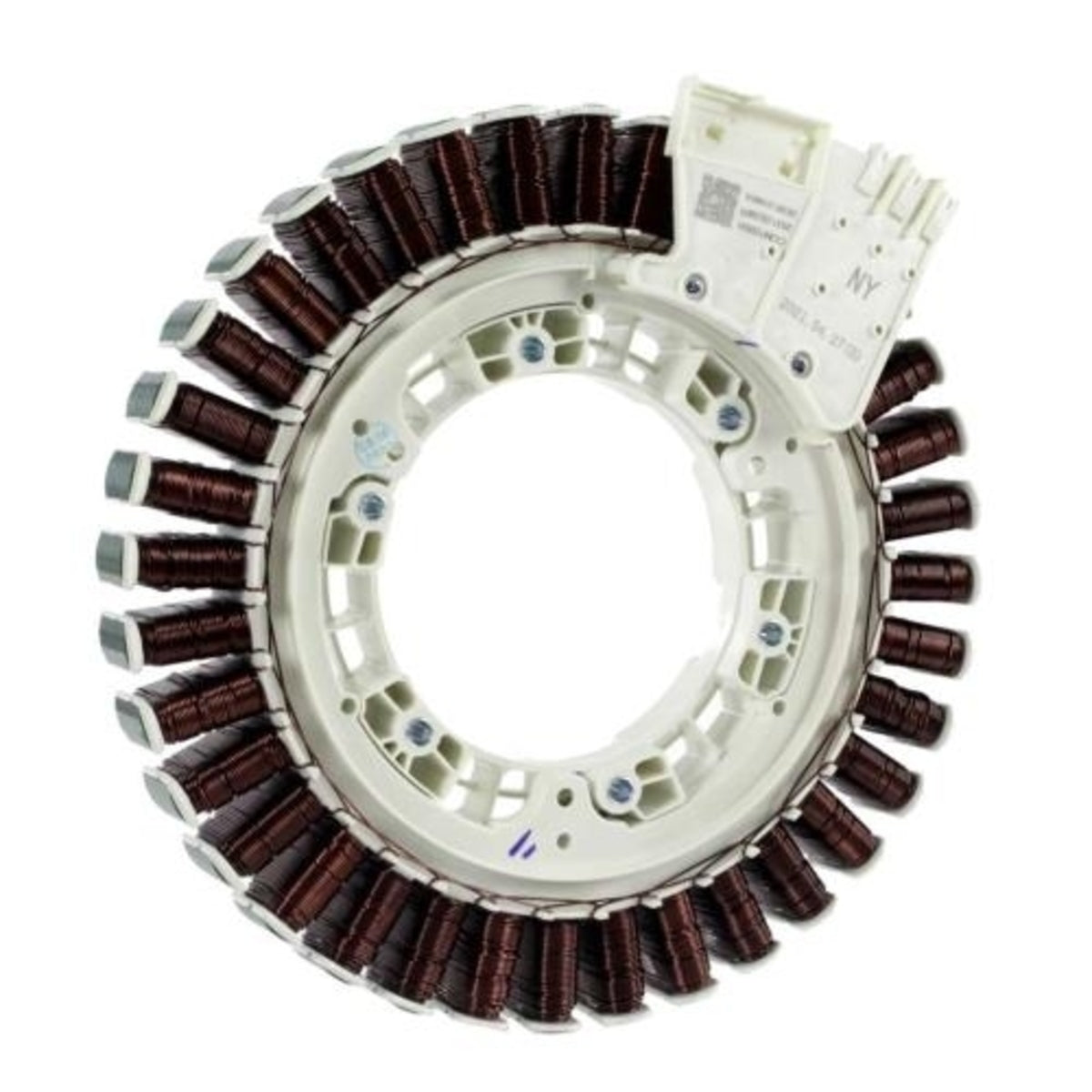

DC97-21487A Samsung Washer Stator Assembly

Restore full motor performance to your Samsung direct-drive washer with the genuine OEM DC97-21487A Stator Assembly. The stator is the stationary electromagnetic component of the washer's BLDC motor — it works with the rotor to generate the torque that spins the wash drum. When the stator fails, the washer may vibrate excessively, display motor error codes, or refuse to spin entirely.

Compatible With:

• Samsung WF45R6100AW, WF45R6100AV (4.5 cu. ft. Front Load Washer)
• Samsung WF45T6000AW, WF45T6000AV (4.5 cu. ft. Front Load Washer)
• Samsung WF50R8500AV, WF50R8500AW (5.0 cu. ft. Front Load Washer)
• Samsung WF45R6100AP, WF45R6100AC (4.5 cu. ft. Front Load Washer)
• Samsung WF42H5000AW, WF42H5000AP (4.2 cu. ft. Front Load Washer)
• Check your model tag (inside the door frame) to confirm fit — stator winding configuration varies by motor revision

Key Features & Benefits:

• Genuine OEM Part: Samsung-manufactured stator — correct winding count, pole configuration, and connector type for your model's BLDC motor.
• Restores Motor Function: Resolves error codes 3E, 3C, EA (motor errors), excessive vibration, no spin, or drum not turning during wash or spin cycles.
• Direct Replacement: Mounts directly to the rear of the drum bearing housing using original bolt pattern — no modification required.

Specifications:

• Part Number: DC97-21487A
• Part Type: Stator Assembly (BLDC Motor)
• Compatible Appliance Type: Samsung Front Load Washer
• OEM Manufacturer: Samsung

Installation Notes: Disconnect power before starting. Access requires removing the rear panel of the washer. The stator is secured by a centre bolt and multiple perimeter bolts — remove the rotor first before unbolting the stator. Check the hall sensor connector on the new stator matches the original before installing. Professional installation strongly recommended due to the weight of the drum assembly.

Part #: DC97-21487A
